Cisco Meraki Client VPN only establishes full-tunnel connections, which will direct all client traffic through the VPN to the configured MX. As such, any content filtering, firewall or traffic shaping rules will apply to the VPN client's outbound traffic.

For remote teleworkers or users whose traffic should not be restricted in the same manner, clients can be configured to use a split-tunnel connection to direct traffic through the VPN only if necessary:

1. Cisco Meraki Client VPN only establishes full-tunnel connections, which will direct all client traffic through the VPN to the configured MX. As such, any content filtering, firewall or traffic shaping rules will apply to the VPN client's outbound traffic.
2. The MX does not support the use of custom hostnames for certificates (e.g. The MX only supports use of the Meraki DDNS hostname for auto-enrollment and use on the MX. With the Meraki DDNS hostname (e.g. Mx450-xyuhsygsvge.dynamic-m.com) not as simply as a custom hostname, the need for AnyConnect profiles cannot be overemphasized.

Download paxful apk file. Their documentation only explains how to configure the connection manually, so I decided to use my Powershell skills to write up something really quick. Luckily for us, this task is extremely simple with Powershell. The following script will automatically configure your Meraki VPN connection on Windows 10.

This article includes instructions for configuring split tunnel client VPN on Windows and Mac OS X. For standard Client VPN configuration on Windows and Mac OS X, please refer to our Client VPN setup guide. The rest of this article assumes a VPN has already been setup in this manner.

Note: This configuration involves manually adding entries to a client's route table, and should only be followed by users with a thorough understanding of routing mechanisms.

Configuring Split Tunnel for Windows

First, modify the properties of the VPN connection to not be used as the default gateway for all traffic:

1. Navigate to Control Panel > Network and Sharing Center > Change Adapter Settings
2. Right click on the VPN connection, then choose Properties
3. Select the Networking tab
4. Select Internet Protocol Version 4 (TCP/IPv4) and click Properties

5. Click Advanced
6. Deselect the box for 'Use default gateway on remote network'

7. Click OK to apply the changes to the interface

Next, add routes for the desired VPN subnets. This should be done with the VPN tunnel connected:

1. Open a command prompt (hold down the Windows key and press 'R')
2. Type 'ipconfig /all' and hit Enter (Note: The name of the VPN will not be displayed unless you are connected to the VPN)
3. Under the list of interfaces, find the Description for the VPN connection created earlier. This will be needed later.

4. Run the below command replacing the relevant information between the <> markings:
   Note: 'Destination subnet' refers to the local LAN subnet (in CIDR notation) on the appliance's site, not the Client VPN subnet specified in Dashboard.

Use the same command, replacing 'add' with 'delete' to remove the route.

Configuring Split Tunnel for OS X

First, disable full tunnel (all traffic over the VPN):

1. Navigate to the specific VPN settings for OS X, located under System Preferences > Network.
2. Click Advanced Settings
3. Under 'Options' section, deselect “Send all traffic over VPN”

Add a new route to local routing table:

1. Connect to the Client VPN
2. Open the Terminal Application; normally this is located in Applications > Utilities > Terminal
3. Verify the PPP interface that is being used for the Client VPN, this can be done by typing “ifconfig”

4. As a superuser, enter the following command, replacing the relevant information between the <> markings:
   Note: 'Destination subnet' refers to the local LAN subnet on the appliance's site, not the Client VPN subnet specified in Dashboard.

Ex. 'route add -net 10.3.0.0 -netmask 255.255.240.0 -interface ppp0'

To verify that the route was added take a look at the routing table, the new subnet should now have an entry. The route table can be accessed by typing 'netstat -r':

The route table will have to be modified depending on what networks will be accessed over the Client VPN (e.g. more than one network behind the concentrator). The interface will also have to be modified if there is more than one VPN configured on the client.

Verify Connectivity

Now that the route is added, a trace route can be performed to verify the direction of the traffic. All internet traffic should head out the normal interface and all VPN traffic should head to the PPP interface.

Note: Ohio drivers license eye exam. These steps will have to be entered each time the VPN is brought up, but they can be defined in a script to make the changes quickly when needed. The specific process for this will be highly dependent on the operating system, tools available, and administrator preferences.

We love the Cisco Meraki VPN at Telnexus. The MX security appliance is a powerful guardian and gateway between the wild Internet and your private Local Area Network (LAN). Here are the abbreviated instructions on how to connect your PC or Mac back to home base.

Meraki Documentation Link

For complete instructions as well as instructions for other versions of Windows and MacOS as well as Linux, iOS and Android, please consult the official Meraki documentation:

VPN Credentials

You should receive the following bits of information from your administrator:

• IP address or hostname of your VPN server
• A “Preshared Key”
• Your username
• Your password

Windows 10 Meraki VPN Setup

Here are the basic steps:

1. Go to Settings->Network->VPN
2. Create a new L2TP/IPsec VPN
3. Name it “My Company VPN”
4. Enter the Server Address
5. Enter the Preshared Key
6. Enter your Username and Password
7. Complete the new VPN wizard
8. Select Adapter Options
9. Right-click on your new VPN, select Properties
10. Click on the Security tab, and then click “Allow these protocols”
11. Under “Allow these protocols” make sure “Unsecured password (PAP)” is the only one checked
12. Click OK to close the Properties box

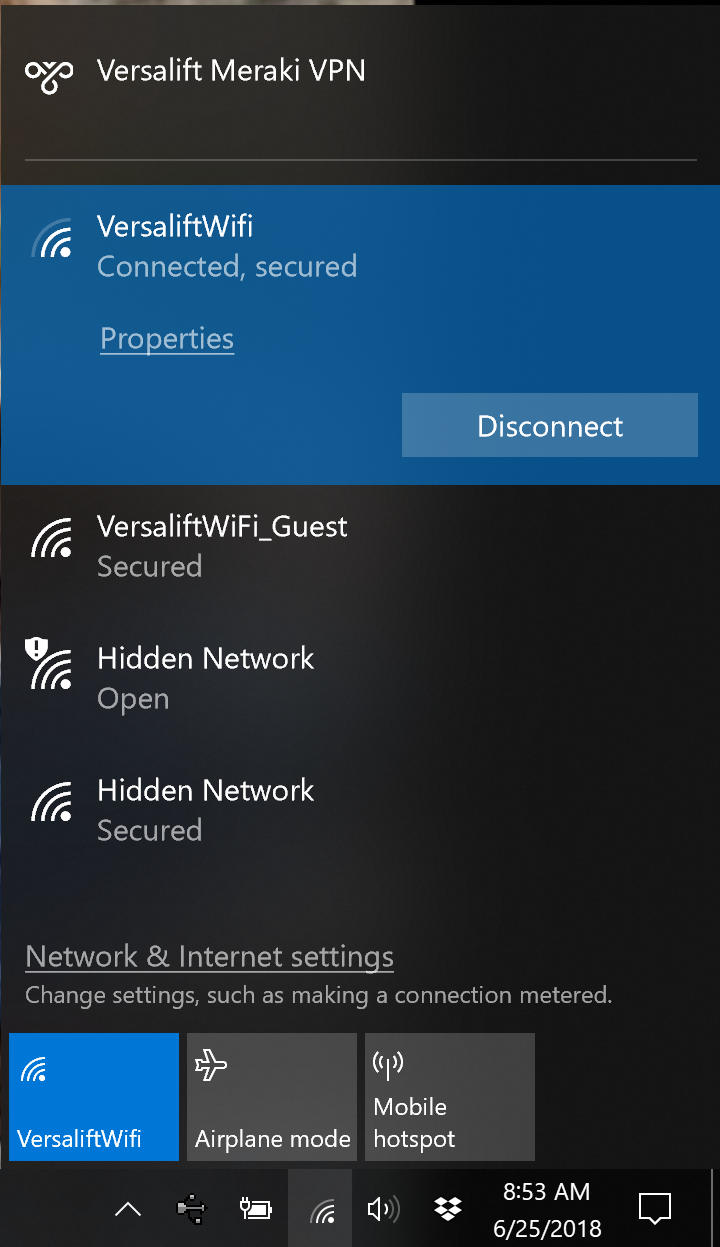

13. Right-click on the new VPN icon and select Connect
14. Click Connect (again) in the Settings->Network->VPN window

For full documentation with screenshots please check the official Meraki documentation.

MacOS Meraki VPN Setup

Here are the basic steps:

1. Open System Preferences > Network from Mac applications menu. Click the “+” button to create a new service, then select VPN as the interface type, and choose L2TP over IPsec from the pull-down menu.
2. Enter your server address in Server Address
3. Enter your Meraki username in Username
4. Click Authentication Settings
5. Enter your Password in box the User Authentication section
6. Enter your Preshared Key in the Shared Secret box
7. Click OK to close the Authentical panel
8. Click Apply to save your settings
9. Click Connect to activate your VPN

For full documentation with screenshots, please check the official Meraki documentation.
